Qmark Infrared Bathroom Heat Lamps and Bathroom Exhaust Fan Heat Lamps

Qmark A564 Bathroom Heat Lamp

We are an authorized distributor for Qmark®, a division of Marley Engineered Products.

Specifications:

UL Listed I.C. for Insulated Ceilings
White Finish
120 Volts
A luxury found in hotels. A heat lamp in a ceiling fixture provides the ultimate in warmth and comfort.
*** These units are NOT to be installed over a tub or in a shower stall enclosure. ***

Qmark A564 Bathroom Heat Lamp
A564

Up to 375 Watt, R40 Infrared Heat Lamp Provides Instant Warmth (lamp not included, can be ordered below)
Inside Reflective Lamp Surface That Directs Gentle Heat Rays Downward
Spring Loaded, Easy-On, Easy-Off Grill
Easy 4-Point Mounting System Installation
Junction Box Easy to Access
Use With Conventional Wall Switch
UL listed I.C. for insulated ceilings.
Also Available as Type Non-I.C., 250 Watt for Use In Non-Insulated Ceilings (Model A535)

Qmark B560 Bathroom Heat Lamp and Exhaust Fan
B560

Up to 375 Watt, R40 Infrared Heat Lamp Provides Instant Warmth (lamp not included, can be ordered below)
Inside Reflective Lamp Surface That Directs Gentle Heat Rays Downward
Spring Loaded, Easy-On, Easy-Off Grill
Easy 4-Point Mounting System Installation
Junction Box Easy to Access
Use With Conventional Wall Switch
4” Duct Adapter With Back Draft Damper
Long Life Permanently Lubricated Motor
Exhaust fan
UL listed I.C. for insulated ceilings.

HVI CERTIFIED RATINGS
CFM	SONES	SQ. FEET
		BATH	OTHER
70	5.5	65	85

Qmark B674W Bathroom Heat Lamp
B674W

Turns the Coldest, Most Damp Bathroom Into a Warm, Comfortable Room
Instantly Provides Up to 750 Watts of Gentle Heat
Uses Two R40 Lamps Up to 375 Watts (2560 BTU) (lamps not included, can be ordered below)
Wired for Switch, Timer or Single Pole Thermostat Operation
Easy Installation With Mounting to Either 16” or 24” O.C. Joists With Rigid, 4-Point Mounting System
Use With Conventional Wall Switch or Timer
UL listed I.C. for insulated ceilings.

Qmark B660W Bathroom Heat Lamp and Exhaust Fan
B660W

Turns the Coldest, Most Damp Bathroom Into a Warm, Comfortable Room
Instantly Provides Up to 750 Watts of Gentle Heat
Uses Two R40 Lamps Up to 375 Watts (2560 BTU) (lamps not included, can be ordered below)
Wired for Switch, Timer or Single Pole Thermostat Operation
Easy Installation With Mounting to Either 16” or 24” O.C. Joists With Rigid, 4-Point Mounting System
Use With Conventional Wall Switch or Timer
4” Duct Adapter
Long Life, Permanently Lubricated, Shaded Pole Motor
Large Venturi Assures Quiet, Efficient Ventilation
Exhaust fan
UL listed I.C. for insulated ceilings.

HVI CERTIFIED RATINGS
CFM	SONES	SQ. FEET
		BATH	OTHER
70	4.0	55	75

A564 Installation and Maintenance Instructions in .pdf format
B660W Installation & Maintenance Instructions in .pdf format
B560 Installation & Maintenance Instructions in .pdf format
B674W Installation & Maintenance Instructions in .pdf format

You must have the free Adobe Acrobat Reader plug-in.

375R40/1 Heat Lamp Side View
Click Here For Larger Image

375R40/1 Heat Lamp Front View
Click Here For Larger Image

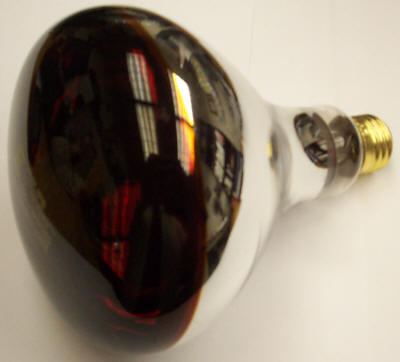

250R40/10 Heat Lamp Side View
Click Here For Larger Image

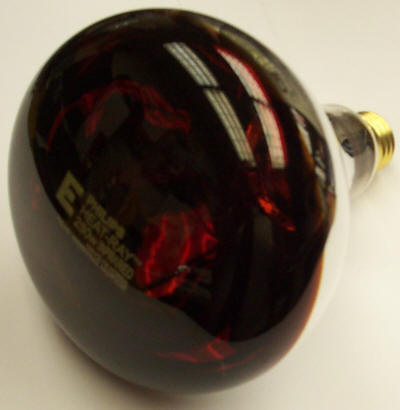

250R40/10 Heat Lamp Front View
Click Here For Larger Image

Secure Online Ordering Delivery time: typically ships in 1 working day or less plus allow additional time for your selected UPS or FedEx shipping method.* Your shipping cost will be displayed in your shopping cart.
Item ID	Catalog #	Description	Price	Check Real-Time Availability and Place Order
QMARK30315017646	A564	Qmark Bathroom Infrared Heat Lamp - 120 Volt - Up To 375 Watt R40 Heat Lamp (Lamp Not Included) - Spring Loaded Easy On Easy Off Grille - White Finish - UL Listed For Use in Insulated Ceilings - Rough In Opening 8-1/2 inch x 9-1/4 inch	$40.35	Order
QMARK30315045953	A535	Qmark Bathroom Infrared Heat Lamp - 120 Volt - Up To 250 Watt R40 Heat Lamp (Lamp Not Included) - Spring Loaded Easy On Easy Off Grille - White Finish - For Use in Non Insulated Ceilings - Rough In Opening 8-1/2 inch x 9-1/4 inch	$33.45	Order
QMARK30315029793	B560	Qmark Bathroom Heat Lamp and Exhaust Fan - 120 Volt - Up To 375 Watt R40 Heat Lamp (Lamp Not Included) - 4 inch Duct Adaptor - Spring Loaded Grille - White Finish - UL Listed For Use in Insulated Ceilings - Rough In Opening 8-1/2 inch x 9-1/4 inch	$60.30	Order
QMARK30315020233	B674W	Qmark Bathroom Infrared Heat Lamp - 120 Volt - Up To (2) 375 Watt R40 Heat Lamps (Lamps Not Included) - Spring Loaded Easy On Easy Off Grille - White Finish - UL Listed For Use in Insulated Ceilings - Rough In Opening 8-1/2 inch x 14-5/16 inch	$63.60	Order
QMARK30315029786	B660W	Qmark Bathroom Heat Lamp and Exhaust Fan - 120 Volt - Up To (2) 375 Watt R40 Heat Lamps (Lamps Not Included) - 4 inch Duct Adaptor - Spring Loaded Grille - White Finish - UL Listed For Use in Insulated Ceilings - Rough In Opening 8-1/2 inch x 14-5/16 inch	$75.00	Order
Heat Lamps
SYLVANIA10001	375R40/1	Clear Infrared Heat Lamp - 120 Volt 375 Watt - R40 Bulb - Medium Skirted Base - 5 inch Diameter 7-5/8 inch Overall Length	$17.11	Order
SYLVANIA10002	250R40/10	Red Infrared Heat Lamp - 120 Volt 250 Watt - R40 Bulb - Medium Base - 5 inch Diameter 6-7/8 inch Overall Length	$14.99	Order
*This delivery time is for normal conditions and is subject to factory availability.

Qmark® is a registered trademark of Marley Engineered Products.
