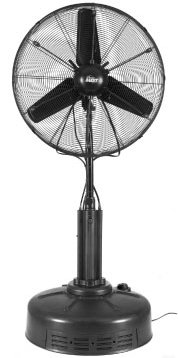

auraMist Portable Dry Misting 30” AM-MF30-1 Commercial Fan

Description:

The 30” Commercial Fan is a fully integrated product featuring six patented nozzles and an onboard water reservoir to deliver maximum cooling for an array of applications including:

• Warehouses
• Shops/Garages
• Outdoor Cafes
• Backyards
• Sports Teams

Personal Comfort DRY Mist

All misting systems and cumbersome evaporative coolers use water to achieve the same cooling performance, up to 30 degrees cooler - but none do it with:

• Revolutionary Unparalleled Nozzle Technology – No Clog
• Higher Quality, Superior DRY Mist – Zero Slip Hazard
• Less Energy
• Up to 80% Less Water
• The Worlds Only Fully Adjustable Mist – Wet or DRY
• Minimum Space Allocation
• Unique adjustable DRY Mist
• Rugged construction
• Fully integrated and portable

…all at a much more affordable price – the auraMIST advantage

Applications:

• Industrial
• Manufacturers
• Warehouses
• Loading Docks
• Utility Companies
• Rental
• Events
• Construction
• Athletics
• Specialty Tool Outlets
• Auto Markets
• Agriculture

Specifications:

• 6 DRY Mist Nozzles
• 6’ tall (telescopic)
• Black Finish
• Oscillates
• 2 Wheels for Mobility
• Operates on 120 VAC
• 3 Speed Fan (1100/950/800 RPM)
• CFM Each Speed (5121/4414/3708)
• ¼ Horse Power Fan Motor
• 8 gallon On Board Water Reservoir
• Runs 8 Hours on One Fill
• 120 Volts, 1 Phase, 60 Hertz, 3.1 Amps, 380 Watts
• Fan Dimensions W x D x H (in.) 30 x 30 x 72
• Package Dimensions W x D x H (in.) 33 x 33 x 18
• Package Gross Weight: 88 lbs.
• 30" Fan Blade Diameter

auraMIST ECO-Advantage:

Calculation assumes 8 hours of operation per day, and $9.50 per 1,500 gallons of water. Calculation assumes 6 nozzles per comparative product.

• Annual Water Conservation (with auraMIST)
  14,730 less gallons than typical low pressure products
  32,263 less gallons than typical high pressure products
• Annual Water Cost Savings (with auraMIST)
  $93.37 less than typical low pressure products
  $204.33 less than typical high pressure products

Parts List:

Owners Manual for 30” Misting Fan How to prime the water pump and adjust misting density

You must have the free Adobe Acrobat Reader plug-in.

Frequently Asked Questions:

• How long will a tank last?
  The AuraMIST 30” misting fan has been designed to run for a continuous eight (8) hours before needing to be refilled when misting at nominal flow rates.

• How much water does the fan use?
  It depends. AuraMIST’s 30” misting fan includes an adjustment so you can control how much water is introduced to the nozzles. We included this feature so you can optimize the effectiveness of the dry mist to your climatic conditions. However, in most situations, effective cooling can be produced with less than 1 gallon of water per hour.

• Can I use my fan without the misting system?
  Absolutely. If you are looking to just circulate air why have two fans? And when it gets too warm, just turn the misting system on with the power switch located on the front of the lower mast.

• Can I mist without the fan on?
  Yes. The misting system can be used without the fan. The fan optimizes the cooling effectiveness over a larger area but the dry mist can be enjoyed at close distances without it.

• Does the fan have the ability to oscillate?
  Yes. Each 30” misting fan has a button on the fan motor to oscillate the fan if desired.

• Can I adjust the height of the fan?
  The AuraMIST 30” misting fan is adjustable from 47” to 60” from the ground. This distance is measured to the center of the fan.

• Do I need to add filtered water to the tank?
  We recommend that with the 30” misting fan, as well as all other AuraMIST water cooling products, only drinking water is added to the tank. If you would drink it, you can add it to the water tanks on our products.

  The 30” misting fan also includes a pre-filter (located under the fill cap) and final five (5) micron filter as added measures to ensure a long service life of the water pump and misting nozzles.

• I thought you needed a high pressure system to offer evaporative cooling without wetting?
  Up until AuraMIST’s products were introduced to the market, you would have been correct with this assumption. However, we spent the last couple years working with a group of scientists to develop a misting technology that will produce the same resultant droplet sizes typical of high pressure systems at extremely low pressures. While most high pressure misting systems operate with 800-1,000 psi of pressure, all of the current AuraMIST products work with pressures less than 40 psi.

• Will the system work in high humidity conditions?
  The simple answer is yes. Though it is typical to see cooling of the air with our misting fans up to 30 degrees when the conditions are ideal (50% relative humidity). When the air is dryer, the cooling effectiveness goes up dramatically. However, even in the most humid areas our systems can cool the air up to 15 degrees.

  As an added benefit on most of AuraMIST’s products, you have the ability to control the effectiveness of the mist to by ensuring its complete evaporation

• Is any maintenance required?
  The only maintenance we suggest is the replacement of your filters on an annual basis. Our nozzles do not require cleaning. It is also recommended that your water tanks are conditioned routinely. Please refer to your owner’s manual for complete maintenance requirements.

• Do I have to worry about the nozzles clogging?
  Another AuraMIST advantage is that you do not need to perform routine maintenance on our misting nozzles. The same technology that brings you a high pressure quality mist with low pressure enables the use of a nozzle design that is self-cleaning. In the rare case that nozzle performance degrades, you can order replacements for your system from AuraMIST directly.

• What do I do if I am not experiencing mist?
  Try priming the water pump and adjusting the misting density (PDF)

ONE YEAR FULL WARRANTY

This produce is warranted for one year from the date of purchase against defects in materials and workmanship. At our discretion, parts that prove to be defective will either be repaired or replaced, or the whole product will be replaced. In either case copy of your proof of purchase will be required.

In case that any mechanical or electrical repairs are required during the warranty period send your complete product, postage or freight prepaid to the auraMIST service center near you. Call the number below to get the nearest service center.

This warranty does not include the air or water filters, which are expendable parts that can wear out from normal use within the warranty period. This warranty applies for only 90 days if this product is ever used for commercial or rental purposes.

auraMIST, LLC
5210 Village Parkway
Rogers, AR 72758
